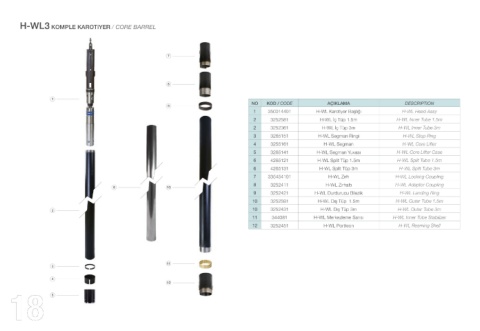

H-WL3 KOMPLE KAROTiYER / CORE BARREL H-WL OVERSHOT / OVERSHOT

NO KOD / CODE AÇIKLAMA DESCRIPTION NO KOD / CODE AÇIKLAMA DESCRIPTION

1 350014401 H-WL Karotiyer Başlığı H-WL Head Assy 1 470438 Halat Bağlama Takımı Eye Bold Assembly
2 3252581 H-WL İç Tüp 1.5m H-WL Inner Tube 1.5m 2 476784 Üst Gövde Cable Swivel Body
2 3252361 H-WL İç Tüp 3m H-WL Inner Tube 3m 3 476766 Overshot Mili Jar Staff
3 3265151 H-WL Segman Ringi H-WL Stop Ring 4 476768 Overshot Mil Tüpü Jar Tube
4 3255161 H-WL Segman H-WL Core Lifter 5 470767 Overshot Mil Somunu Hex Nut
5 3265141 H-WL Segman Yuvası H-WL Core Lifter Case 6 470768 Kilit Mekanizma Tapası Locking Cap
6 4265121 H-WL Split Tüp 1.5m H-WL Split Tube 1.5m 7 476769 Kilit Mekanizma Yayı Locking Spring
6 4265131 H-WL Split Tüp 3m H-WL Split Tube 3m 8 476765 Kilit Mekanizma Kabı Sleeve
7 335454101 H-WL Zırh H-WL Locking Coupling 9 476762 Overshot Başlığı Overshot Head
8 3252411 H-WL Zırhaltı H-WL Adaptor Coupling 10 476722 Bilya Baskı Compression Spring
9 3252421 H-WL Durdurucu Bilezik H-WL Landing Ring 11 470002 Bilya Steel Ball
10 3252591 H-WL Dış Tüp 1.5m H-WL Outer Tube 1.5m 12 470669 Overshot Mandal Yayı Compression Spring
10 3252431 H-WL Dış Tüp 3m H-WL Outer Tube 3m 13 476676 Overshot Mandal Lifting Dog
11 344081 H-WL Merkezleme Sarısı H-WL Inner Tube Stabilizer 14 476767 Overshot Mandal Pimi Plain Pin
12 3252451 H-WL Portkron H-WL Reaming Shell 15 476757 Kilitleme Pimi Locking Pin
